SPECIFICATIONS

APP: TUYA/SMART LIFE
Application: Water Heating/Electric Heating System/Boiler
Brand Name: SHOJZJ
Certification: CE,FCC,RoHS
Communication: ZigBee /2MQTT
Current Load: 3A/16A
Display Temp.Range: 5-99 ℃
Function 1: 5+2/6+1/7 days Program function
Function 2: WIFI for Andriod&Apple ios
Function 3: Power off memory function
Function 4: Child Lock
Function 5: Anti-Freezing
High-concerned chemical: none
Housing Color: White/Black

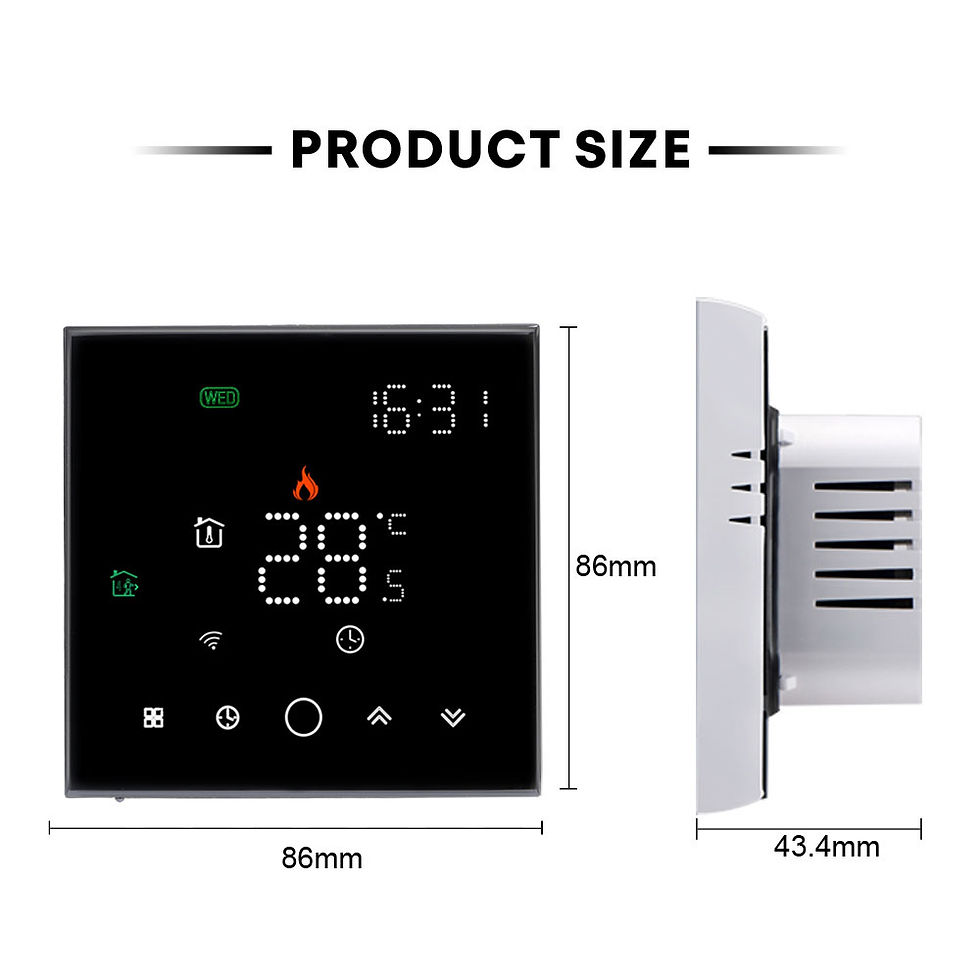

Installation Box: 86*86mm or European 60m
Model Number: ZJ-BHT-003
Origin: Mainland China
Power Supply: 24VAC/110VAC/220VAC
Sensor: NTC3950
Set Temp.Range: 5-35 ℃
Shell Material: PC+ABS(Fireproof)
Storage Temp.: 5-45 ℃
Type: Floor Heating Systems
Wattage: 220VAC~240VAC 50/60Hz

Zigbee Thermostat Temperature Controller 2MQTT Setup for Water/Electric Floor Heating Water/Gas Boiler with TUYA SMART LIFE
Product Features:
1.Smart Tuya ZigBee Thermostat:Functional heating system with ZigBee protocol built in for intelligent control of water floor,electric heating and water/gas boiler heating system,providing maximum and comprehensive  convenience to your smart life for house temperature,(Note:current load is 5A)focusing on making simple,human,delightful feelings for your home,and this kind of color is suitable for various decoration styles,even with temperature correction and child lock supported.

2.A Tuya ZigBee Wireless Gateway Hub is a Must to work with: A ZigBee wireless hub is a must that connects to the thermostat ,as well as a variety of ZigBee smart products, which is proved to be the bridge and control center for smart homes and plays an irreplaceable role for all ZigBee products and realizes the whole linkage of your house,proved to be a really good substitution for unstable WiFi network.Simply add the thermostat into the ZigBee hub after adding the hub into Smart Life/Tuya App.

3.Programmable Schedule with Weekly Programming Selection:Supports manual set up 5+1+1 weekly schedule with 4 periods for option,providing you with the maximum convenience for different situation and setting customized schedule for your house temperature in Smart Life and Tuya App.

4.Voice and Remote Control for the Tuya ZigBee Wireless Gateway Connected:Supports App remote control via your smart phone,together with the hands-free voice control via Alexa and Google Assistant after successfully connecting your thermostat to "Smart Life "App on the basis of one Tuya ZigBee Wireless Gateway.

5.Sensor selection with IN/AL/OU available:set high limit temperature ceiling with 45-70℃ and the lower limit of temperature with 1-5 ℃ adjustable in App to get more convenience for the device;device share to your family or friends for added convenience.Full 2 Years Warranty,for All  Smart Thermostat,60 Days Refund Guarantee,Your complete satisfaction is the goal for all our customers.

              Temperature and Humidity Sensor
Detail：
1. Radio transmission circuit and coding technology to solve signal interference blocking problem
2. Various temperature modes can be adjusted for different scenes
3. Wireless transmission of data signals, remote monitoring of mobile phones
